ASME SA336 F5N High Temperature And Pressure Alloy Steel Forging For Heat Exchanger Baffle

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	YUHONG
Certificering:	ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Modelnummer:	ASME SA336 F5N

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 stuk
Verpakking Details:	Vouw houten geval/Pallet
Levertijd:	7 dagen
Betalingscondities:	L/C,T/T

Contact

Alle producten

Naadloze buizen van roestvrij staal (285)

Roestvrij staal Naadloze Buis (273)

Duplexroestvrij staalpijp (127)

Duplexroestvrij staalbuis (28)

Naaldbuis (98)

Vinnenbuis (608)

warmtewisselaar (15)

warmtewisselaarbuis (424)

Warmtewisselaarbuisbundel (37)

Warmtewisselaar Tubesheet (115)

warmtewisselaarschot (36)

Luchtkoeler (7)

Drukvat (4)

roestvrij staal gelaste pijp (57)

Roestvrij staal Gelaste Buis (112)

De Pijp van de nikkellegering (259)

De Buis van de nikkellegering (75)

De Buis van de koperlegering (219)

De Buis van het legeringsstaal (177)

Titaniumbuis (9)

heldere ontharde buis (153)

Boilerbuis (138)

staalmontage (791)

Staalflens (577)

Andere (386)

Bekledingsonderdelen (5)

Gedetailleerde productomschrijving

Standaard:	ASME SA336 F5N	Materiaal:	F1 F5 F6 F9 F11
Vorm:	configuraties van het rechte, de spiraalvormige, en staafschot	Grootte:	kan douane, als de tekeningsvereisten van de koper
Productieproces:	Het snijdend, ruwe eindigt machinaal bewerken, machinaal bewerkend	Sollicitatie:	buistype hitteuitwisseling, boiler, drukvat, stoomturbine, locomotief, krachtcentrale, de grote indu
Markeren:	SA336 F5N Heat Exchanger Baffle , High Temperature Heat Exchanger Baffle , ASME Heat Exchanger Baffle

ASME SA336 F5N High Temperature And Pressure Alloy Steel Forging For Heat Exchanger Baffle

ASME SA336 F5N is a chromium-molybdenum alloy steel forging for high temperature and high pressure. It follows the ASME SA-336/SA-336M standard. This is a standard specifically for alloy steel and stainless steel forgings for pressure vessels.

F5N material grade. The N suffix usually indicates that the material has undergone a specific normalizing, heat treatment.

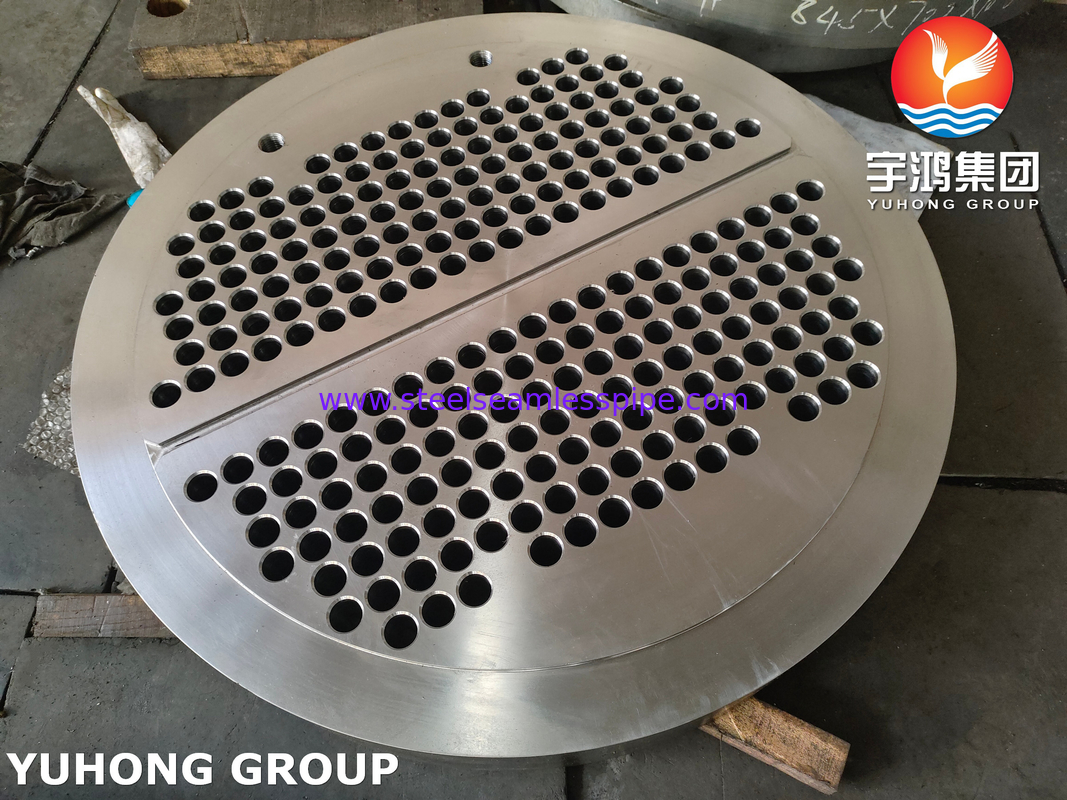

Pressure vessel tube sheets made of SME SA-336 F5N material are key components of high temperature and high pressure hydrogen equipment

Mechanical properties

Yield Rp0.2 (MPa)	Tensile Rm (MPa)	Impact KV/Ku (J)	Elongation A (%)	Reduction in cross section on fracture Z (%)	As-Heat-Treated Condition	Brinell hardness (HBW)
831 (≥)	636 (≥)	41	44	24	Solution and Aging, Annealing, Ausaging, Q+T,etc	342

Physical properties

Temperature (°C)	Modulus of elasticity (GPa)	Mean coefficient of thermal expansion 10-6/(°C) between 20(°C) and	Thermal conductivity (W/m·°C)	Specific thermal capacity (J/kg·°C)	Specific electrical resistivity (Ω mm²/m)	Density (kg/dm³)	Poisson's coefficient, ν
44	-	-			0.33	-
633	595	-	23.3	142		-
716	-	22	42.2			413	223

Application:

Petroleum refining: Hydroprocessing reactors

Large forgings such as barrels, heads, flanges, tube sheets, support rings, etc. of hydrocracking reactors.

Its excellent resistance to hydrogen corrosion and temper embrittlement is crucial here.

Coal chemical industry: Key high temperature and high pressure components of coal gasifiers.

Others: High-pressure steam systems, synthetic ammonia, high temperature and high pressure heat exchangers, etc., which require high strength and toughness and high temperature corrosion resistance.
