ASTM B366 N08810 N08820 Equal Tee Incoloy 800H/800HT Tee, High Temp Corrosion Resistant For Piping System

Productdetails:

Plaats van herkomst:	China
Merknaam:	YUHONG
Certificering:	API, PED , ABS, DNV, BV, LR
Modelnummer:	ASTM B366 NO8810&N08820

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 st
Prijs:	Onderhandelbaar
Verpakking Details:	Houtkasten of pallets van polyesterhout
Levertijd:	Afhankelijk van de hoeveelheid
Betalingscondities:	T/T, L/C op zicht
Levering vermogen:	10000 stuks per maand

Contact

Alle producten

Naadloze buizen van roestvrij staal (332)

Roestvrij staal Naadloze Buis (324)

Duplexroestvrij staalpijp (134)

Duplexroestvrij staalbuis (37)

Naaldbuis (158)

Vinnenbuis (705)

warmtewisselaar (31)

warmtewisselaarbuis (459)

Warmtewisselaarbuisbundel (49)

Warmtewisselaar Tubesheet (125)

warmtewisselaarschot (39)

Luchtkoeler (11)

Drukvat (4)

roestvrij staal gelaste pijp (61)

Roestvrij staal Gelaste Buis (132)

De Pijp van de nikkellegering (273)

De Buis van de nikkellegering (103)

De Buis van de koperlegering (250)

De Buis van het legeringsstaal (210)

Titaniumbuis (20)

heldere ontharde buis (172)

Boilerbuis (152)

staalmontage (862)

Staalflens (660)

Andere (406)

Bekledingsonderdelen (8)

Gedetailleerde productomschrijving

Standaard:	ASTM B366/ASME SB366	Productnaam:	Gelijke T-shirt
OD:	Volgens het verzoek van de klant	WT:	Programma 10s aan Programma XXS
type:	Naadloos	Certificaten:	SGS VAN ISO TUV BV, ENZ.
Afmetingsnorm:	ASME/ANSI B16.9	Sollicitatie:	de chemische, Mariene milieu's van het oliegas, enz.
Markeren:	ASTM B366 Incoloy 800H equal tee , high temperature corrosion resistant tee , N08810 N08820 piping system tee

ASTM B366 N08810 N08820 Equal Tee Incoloy 800H/800HT Tee, High Temp Corrosion Resistant For Piping System

ASTM B366 N08810 & N08820 equal diameter tees are special alloy pipe fittings designed to withstand extremely harsh high-temperature, high-pressure, and corrosive conditions, fundamentally solving the connection problems of core piping systems in the petrochemical, energy, and high-end manufacturing industries.

800H (N08810) - High-Temperature Reinforced Version: By specially increasing the carbon content (0.05%-0.10%) and combining it with high-temperature solution treatment, coarse austenitic grains are obtained, resulting in excellent creep resistance and end-of-life fracture strength at high temperatures. Due to its high chromium and high nickel content, it exhibits excellent resistance to stress corrosion cracking in corrosive media such as chlorides and high-temperature, high-pressure water.

800HT (N08820) - Enhanced High-Temperature Performance: Based on 800H, by more strictly controlling the content of carbon, aluminum, and titanium, its creep rupture strength at high temperatures is higher than that of 800H, while maintaining good strength and excellent resistance to oxidation and carburization.

Chemical Composition
Element	N08810 (Incoloy 800H)	N08820 (Incoloy 800HT)
Nickel (Ni)	30.0 – 35.0	30.0 – 35.0
Chromium (Cr)	19.0 – 23.0	19.0 – 23.0
Iron (Fe)	≥ 39.5 (Balance)	≥ 39.5 (Balance)
Carbon (C)	0.05 – 0.10	0.06 – 0.10
Manganese (Mn)	≤ 1.50	≤ 1.50
Silicon (Si)	≤ 1.00	≤ 1.00
Sulfur (S)	≤ 0.015	≤ 0.015
Copper (Cu)	≤ 0.75	≤ 0.75
Aluminum (Al)	0.15 – 0.60	0.25 – 0.60
Titanium (Ti)	0.15 – 0.60	0.25 – 0.60
Cobalt (Co)	—	≤ 2.00

Mechanical Properties
Property	N08810 (Incoloy 800H)	N08820 (Incoloy 800HT)
Tensile Strength (min.)	≥ 520 MPa (75 ksi)	≥ 520 – 870 MPa
Yield Strength – 0.2% offset (min.)	≥ 205 MPa (30 ksi)	≥ 205 – 345 MPa
Elongation (min.)	≥ 30%	≥ 30%
Hardness	≤ 200 HB (typical)	≤ 200 HB (typical)

Applications

Ethylene cracking furnace tubes;
Bellows and flare heads in oil refineries;
Intermediate heat exchangers in fourth-generation reactors;
Heat transfer tubes in high-temperature gas-cooled reactor steam generators;
Superheaters and reheaters in ultra-/ultra-supercritical boilers for thermal and solar thermal power generation.

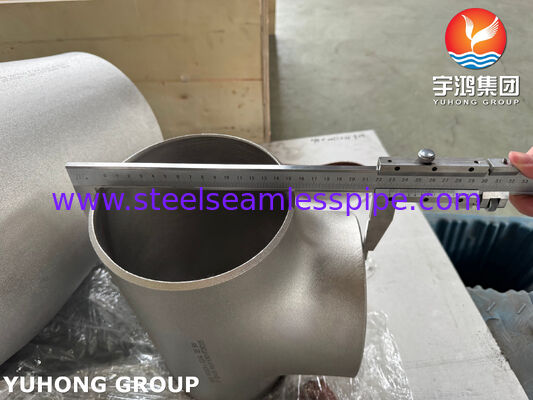

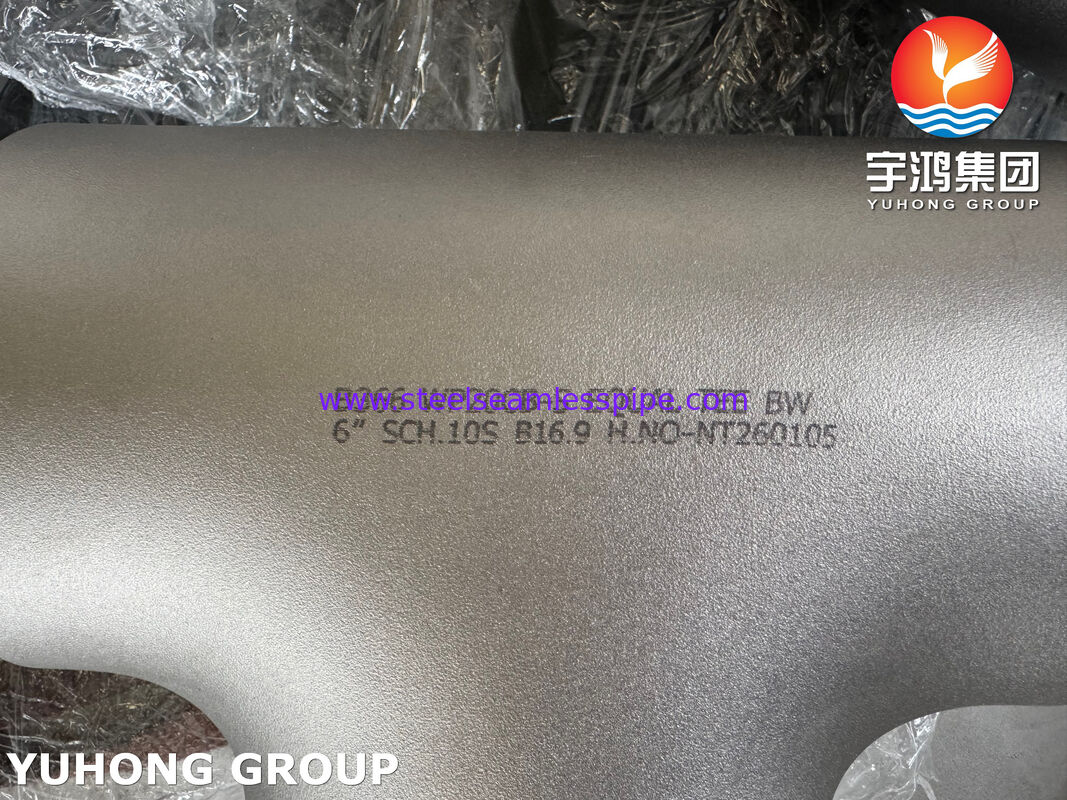

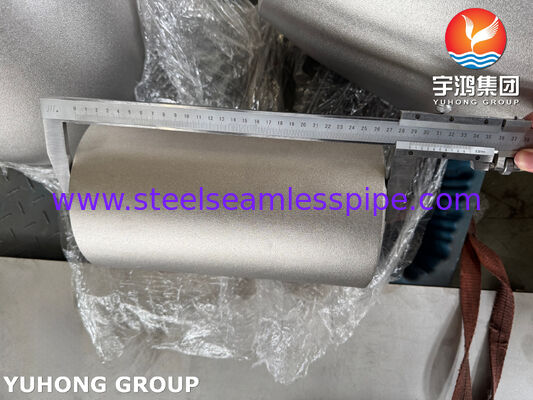

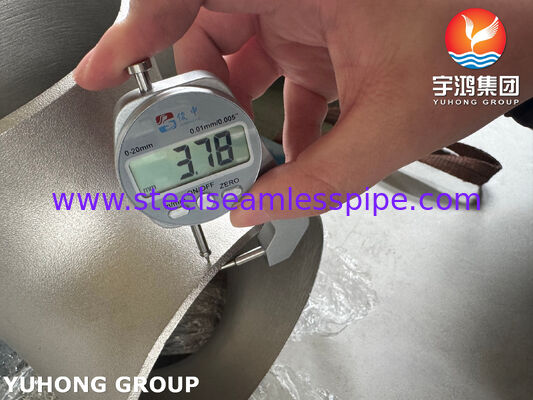

ASTM B366 N08810 N08820 Equal Tee Incoloy 800H/800HT Tee, High Temp Corrosion Resistant For Piping System 0
