ASTM B462 Nickel Alloy UNS N10276 Blind Flange Hastelloy C276 BLRF Flange

Productdetails:

Plaats van herkomst:	China
Merknaam:	YUHONG
Certificering:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Modelnummer:	ASTM B462 UNS N10276 Hastelloy blinde flens

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 ST
Verpakking Details:	Triplexgeval/pallet
Levertijd:	7 dagen
Betalingscondities:	L/C, T/T

Contact

Alle producten

Naadloze buizen van roestvrij staal (290)

Roestvrij staal Naadloze Buis (277)

Duplexroestvrij staalpijp (127)

Duplexroestvrij staalbuis (29)

Naaldbuis (107)

Vinnenbuis (631)

warmtewisselaar (17)

warmtewisselaarbuis (424)

Warmtewisselaarbuisbundel (37)

Warmtewisselaar Tubesheet (116)

warmtewisselaarschot (36)

Luchtkoeler (8)

Drukvat (4)

roestvrij staal gelaste pijp (57)

Roestvrij staal Gelaste Buis (114)

De Pijp van de nikkellegering (261)

De Buis van de nikkellegering (79)

De Buis van de koperlegering (227)

De Buis van het legeringsstaal (184)

Titaniumbuis (10)

heldere ontharde buis (153)

Boilerbuis (145)

staalmontage (804)

Staalflens (590)

Andere (391)

Bekledingsonderdelen (7)

Gedetailleerde productomschrijving

Productnaam:	Hastelloy-flens	Dimensie:	ANSI Flenzen, ASME-Flenzen, de Flenzen van BS, DIN-Flenzen, ENGELSE Flenzen enz.
Materiaal:	UNS N10276 / 2.4819 / Hastelloy C276	Maat:	1/8" TOT 48"
Druk:	Klasse150/300/600/9001500/2500	Flensgezicht:	Vlak vlak (FF), verhoogd vlak (RF)
Applicatie:	Petroleum, chemische industrie, onshore en offshore, scheepsbouw, enz.
Markeren:	ASTM B462 Nickel Alloy Blind Flange , Hastelloy C276 BLRF Flange , UNS N10276 Steel Flange

Hastelloy C276 Flange , ASTM B462 UNS N10276 / 2.4819 Nickel Alloy Blind Flange

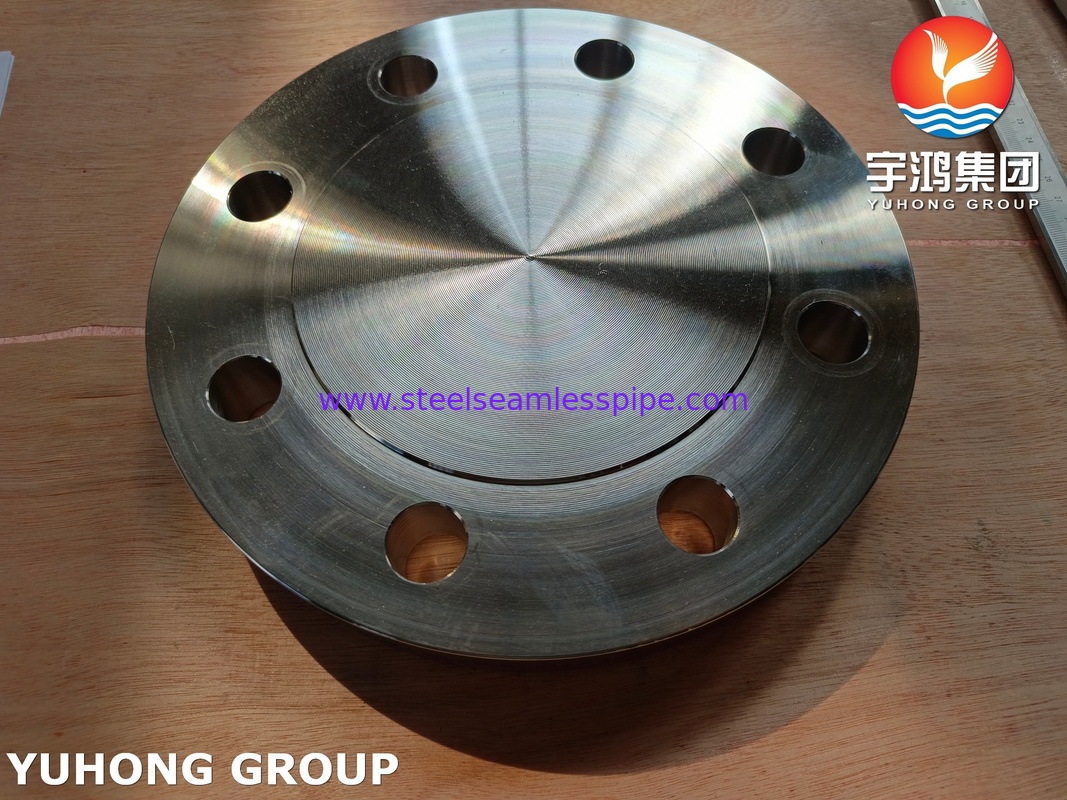

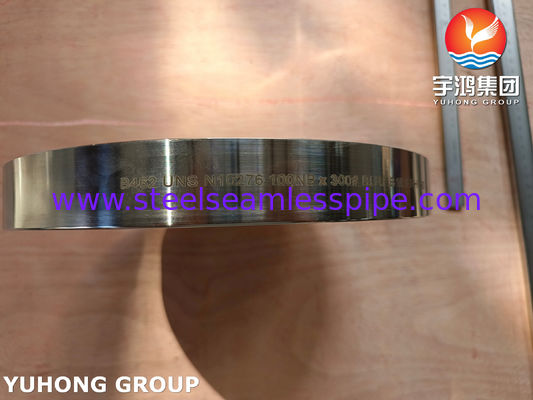

ASTM B462 C276 Hastelloy Blind Flange is a solid disk used to blank off the end of a piping system, a pressure vessel opening, or a valve. It is manufactured from a nickel-chromium-molybdenum alloy known for exceptional corrosion resistance in a wide range of severe environments.

Advantages of Using C276 Blind Flanges

Long Service Life: Drastically reduces maintenance and replacement frequency in aggressive environments.
Reliability and Safety: Provides a robust and leak-proof seal for isolating high-pressure, hazardous systems.
Versatility: A single, well-chosen material (C-276) can often handle multiple process streams, simplifying inventory.
High-Temperature Capability: Maintains strength and corrosion resistance at elevated temperatures.

Equivalent Grades of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Blind Flange

STANDARD	UNS	WNR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Chemical Composition of of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Blind Flange

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

Mechanical properties (Minimum value at 20℃) of Hastelloy C276 Flange Nickel Alloy UNS N10276 Blind Flange

Tensile Strengthσb/MPa	Yield Strengthσp0.2/MPa	Elongationσ5 /%
690	283	40

When you request or purchase this component, ensure your purchase order or data sheet includes the following:

Material Specification: ASTM B462, Grade C276 / UNS N10276.
Product Standard: ASME B16.5 or ASME B16.47.
Size: Nominal Pipe Size (NPS) - e.g., 8", 12", 24".
Pressure Class: e.g., Class 150, Class 300, etc.
Facing: e.g., Raised Face (RF), Ring-Type Joint (RTJ).
Special Requirements:
- Heat Number: Required for critical services to verify material properties.
- Certification: Material Test Reports (MTRs) or Certificates of Conformance.
- Non-Destructive Testing (NDT): Dye Penetrant (PT) or Ultrasonic Testing (UT) may be specified.
- Positive Material Identification (PMI): Verification of alloy composition.

Application

Chemical Processing Industry (CPI): Reactors, vessels, and piping handling harsh acids (sulfuric, hydrochloric) and chlorine.
Pollution Control / Flue Gas Desulfurization (FGD): Scrubbers, ductwork, and dampers handling hot, wet, chlorinated gases.
Pulp and Paper Industry: Digesters, bleach plants (handling chlorine dioxide).
Pharmaceutical Industry: Critical process equipment requiring high purity and corrosion resistance.
Waste Incineration & Wastewater Treatment: Handling aggressive chemical by-products.
Marine and Offshore: For components exposed to seawater and sour gas (H₂S).
