ASME Certificated Second-Stage Vacuum Condenser for Lubricant Oil Solvent Refining Unit

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	YUHONG
Certificering:	ASME, ABS, DNV-GL , BV, LR , KR, CCS, PED, TUV, ISO9001, AD2000
Modelnummer:	AES-type

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1Set
Prijs:	1--1000000 USD
Verpakking Details:	Vereisten/ ply-hout case/ ijzeren kast/ bundel met plastic dop
Levertijd:	45 tot 150 dagen
Betalingscondities:	T/t, l/c bij zicht
Levering vermogen:	60 sets/maand

Contact

Alle producten

Naadloze buizen van roestvrij staal (290)

Roestvrij staal Naadloze Buis (277)

Duplexroestvrij staalpijp (127)

Duplexroestvrij staalbuis (29)

Naaldbuis (107)

Vinnenbuis (631)

warmtewisselaar (17)

warmtewisselaarbuis (424)

Warmtewisselaarbuisbundel (37)

Warmtewisselaar Tubesheet (116)

warmtewisselaarschot (36)

Luchtkoeler (8)

Drukvat (4)

roestvrij staal gelaste pijp (57)

Roestvrij staal Gelaste Buis (114)

De Pijp van de nikkellegering (261)

De Buis van de nikkellegering (79)

De Buis van de koperlegering (227)

De Buis van het legeringsstaal (184)

Titaniumbuis (10)

heldere ontharde buis (153)

Boilerbuis (145)

staalmontage (804)

Staalflens (590)

Andere (391)

Bekledingsonderdelen (7)

Gedetailleerde productomschrijving

Standaard:	Tema "R" ed.99 Tipo: AES	Stroomopstelling:	Eenvoudige pas
Schelp:	A516	Buizen:	SA214
test:	Waterstof geïnduceerd kraken "d"
Markeren:	ASME certified vacuum condenser , second-stage condenser for lubricant oil , solvent refining heat exchanger

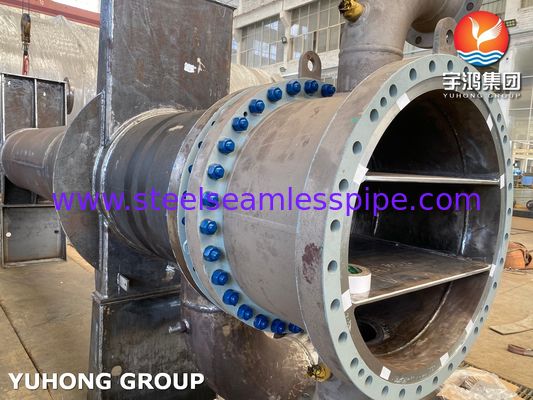

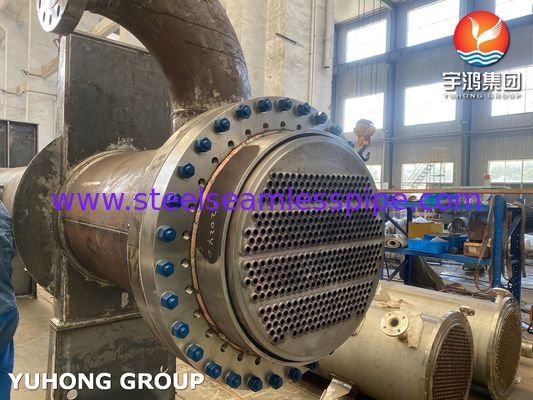

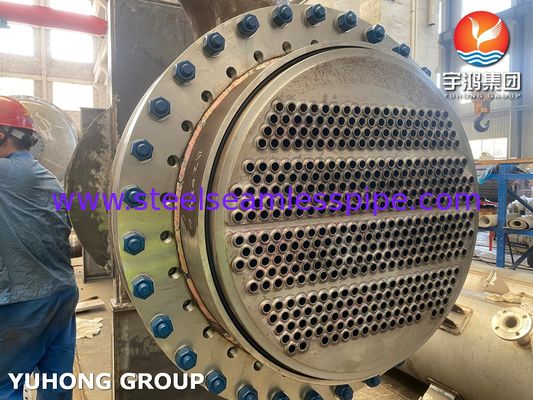

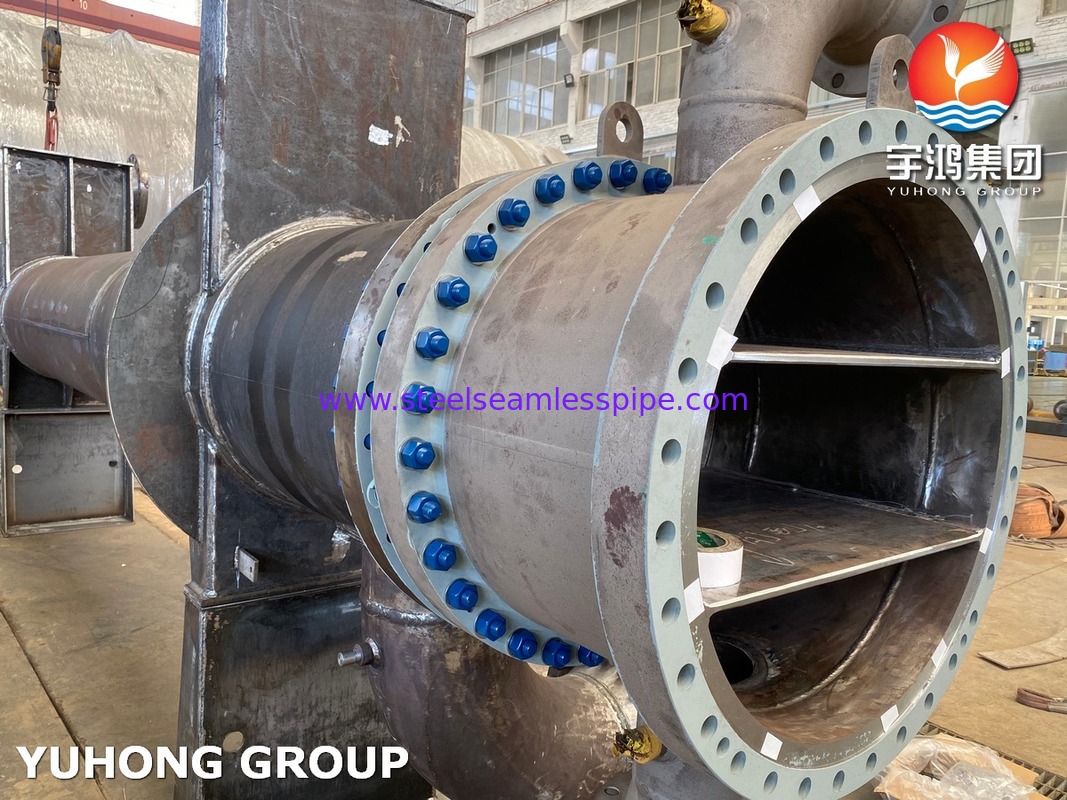

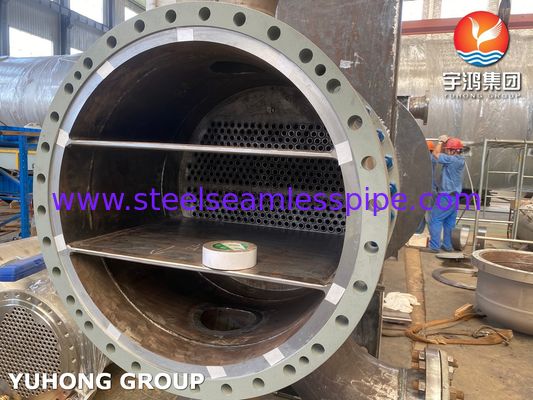

ASME Certificated Second-Stage Vacuum Condenser for Lubricant Oil Solvent Refining Unit

YUHONG is a national high-tech enterprise specializing in the design, manufacture, and service of high-end pressure vessels and heat exchange equipment. With over two decades of industry experience, we hold numerous international and domestic certifications, including the ASME "U" stamp and China's Class A1/A2 Pressure Vessel Manufacturing License. Adhering to the business philosophy of "quality first, technology at the core, and customer-centric," we are committed to providing safe, efficient, and reliable process equipment solutions for the global petrochemical, fine chemical, power energy, and environmental protection industries. We are honored to provide high-performance heat exchangers for your project.

Second-Stage Vacuum Condenser Heat Exchanger Materials List

POS.	Description
POS.	Description
1	FIXED TUBESHEET
2	FLOATING TUBESHEET
3	TUBES TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=3048
4	BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM
5	BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM
6	SUPPORT PLATE SA-36 PLATE 16mm (5/8"), 806.2MM
7	TIE RODS SA-36 BAR Ø1/2", L=2883MM
8	HEX NUT SA-194-2M Ø1/2" "UNC" THREAD
9	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=502MM
10	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1507.5MM
11	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1262MM
12	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 747.5MM
13	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 1537.5MM
14	SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=777.5MM
15	GASKET PLATE SA-36 PLATE 6.3mm (1/4"), 58x1573MM
16	SLIDING PLATE SA-36 PLATE 12.5mm (1/2"), 74x2850MM
17	PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM
18	PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM
19	SQUARE PLATE SA-36 Ø6.3mm (1/4"), L=515MM
20	HEADLESS SLOTTED PLUG AISI-304 Ø3/4" "UNC" THREAD, L=30MM
21	EYE BOLT DIN 580 "UNC" THREAD, 3/4INCHx30MM
22	IDENTIFICATION PLATE AISI-304 PLATE 1.5mm, 35x75MM
23	STOPPER SA-36 PLATE 19mm (3/4"), 37x40MM

HIC Testing and the "HIC D" Grade, Second-Stage Vacuum Condenser

HIC stands for Hydrogen Induced Cracking. It is a standardized laboratory corrosion test designed to evaluate the resistance of steel to internal cracking caused by hydrogen atoms penetrating the metal in a wet H₂S-containing acidic environment. The test is typically performed according to international standards such as NACE TM0284 or ISO 15156.

The "D" means the material must pass the most stringent assessment. The standard acceptance criteria for a "D" grade are typically as follows (exact values are subject to the project specification):

•Crack Length Ratio (CLR) ≤ 5%

•Crack Thickness Ratio (CTR) ≤ 1.5%

•Crack Sensitivity Ratio (CSR) ≤ 0.5%

In some extremely severe service conditions, the specification may require all three indices to be 0%, meaning no detectable cracking is permitted.
