ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Fin Fan Cooler

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	Yuhong
Certificering:	DNV, BV, PED, LR, ABS, TS, CCS
Modelnummer:	ASTM A179

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	100 kg
Prijs:	Onderhandelbaar
Verpakking Details:	Ply-houten kast / ijzeren kast / bundel met plastic dop
Betalingscondities:	L/c, t/t
Levering vermogen:	1000 ton/maand

Contact

Alle producten

Naadloze buizen van roestvrij staal (290)

Roestvrij staal Naadloze Buis (277)

Duplexroestvrij staalpijp (127)

Duplexroestvrij staalbuis (29)

Naaldbuis (107)

Vinnenbuis (631)

warmtewisselaar (17)

warmtewisselaarbuis (424)

Warmtewisselaarbuisbundel (37)

Warmtewisselaar Tubesheet (116)

warmtewisselaarschot (36)

Luchtkoeler (8)

Drukvat (4)

roestvrij staal gelaste pijp (57)

Roestvrij staal Gelaste Buis (114)

De Pijp van de nikkellegering (261)

De Buis van de nikkellegering (79)

De Buis van de koperlegering (227)

De Buis van het legeringsstaal (184)

Titaniumbuis (10)

heldere ontharde buis (153)

Boilerbuis (145)

staalmontage (804)

Staalflens (590)

Andere (391)

Bekledingsonderdelen (7)

Gedetailleerde productomschrijving

Pakket:	Ply-woonden case met ijzeren kast	Vin -cijfer:	Al 1060
Vinhoogte:	15.875 mm	Basisbuisnorm:	ASME SA179
De Lengte van de basisbuis:	aangepast	Product:	Vinnenbuis
Sollicitatie:	Warmtewisselaar, luchtkoeler	Vintype:	Geëxtrudeerd
Markeren:	ASTM A179 carbon steel fin tube , extruded fin tube for cooler , Al1060 fin fan cooler tube

ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Fin Fan Cooler

Product Overview:

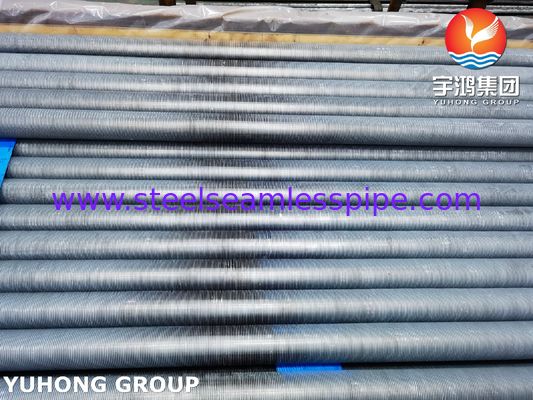

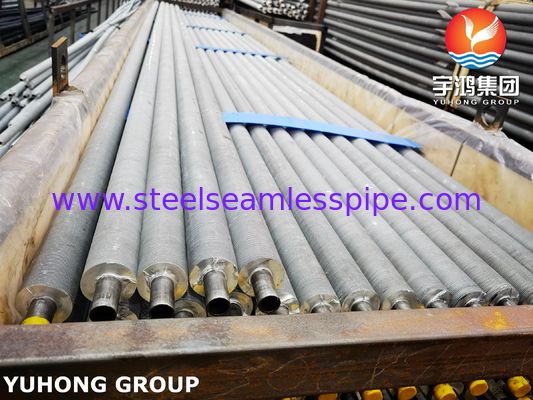

This fin tube consists of a seamless ASTM A179 carbon steel base tube with extruded Aluminium 1060 fins. The extrusion process forms an integral bond between the fins and the tube, ensuring excellent heat transfer performance, mechanical durability, and long-term reliability in air-cooled heat exchanger systems.

ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes

Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.

Detail:

General extrusion production capacity	General specifications of Extruded Fin Tubes/Embedded
Facility: 20 finning machines. Daily capacity up to 7600 meters. Extruded fins type: solid plain and serrated.	Tube OD: 12mm min.~50.8mm(2'') max. Tube Length: 32 meters max. Fin Height: 25.4 mm max. Fin Thickness: appr. 0.2/0.3/0.4mm/0.5mm/0.6mm Fin Pitch: 1.5mm min.

Chemical Composition ASTM A179 Carbon Steel (Base Tube)

Property	Content (wt%)
Carbon (C)	0.06 – 0.18
Manganese (Mn)	0.27 – 0.63
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.035
Iron (Fe)	Balance

Aluminium 1060 (Fin Material)

Property	Content (wt%)
Aluminium (Al)	≥ 99.6
Copper (Cu)	≤ 0.05
Iron (Fe)	≤ 0.35
Silicon (Si)	≤ 0.25
Zinc (Zn)	≤ 0.05
Manganese (Mn)	≤ 0.03
Magnesium (Mg)	≤ 0.03
Titanium (Ti)	≤ 0.03
Others (Total)	≤ 0.15

Mechanical Properties ASTM A179 Carbon Steel (Base Tube)

Property	Value
Tensile Strength (MPa)	≥ 325
Yield Strength (MPa)	≥ 180
Elongation (%)	≥ 35

Aluminium 1060 (Fin Material)

Property	Value
Tensile Strength (MPa)	60 – 100
Yield Strength (MPa)	≥ 20
Elongation (%)	≥ 23
Brinell Hardness (HB)	~ 27

Applications

Fin Fan Coolers (Air Coolers) in refineries, petrochemical plants, and power plants
Air-cooled Heat Exchangers for oil, gas, and chemical industries
Process Cooling Systems in fertilizer, LNG, and hydrogen plants
Convection Cooling in power generation and industrial boilers

Advantages

Strong metallurgical bond between fins and tube, resistant to thermal cycling
High thermal conductivity from Aluminium 1060 fins
Robust carbon steel base tube (ASTM A179) for high strength and pressure resistance
Longer service life and easier cleaning compared with mechanical fin types (L/LL/KL/G)
Cost-effective solution for large-scale air cooling system
